SB12V5200P-BC

Download

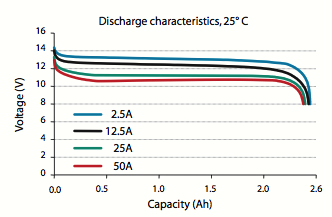

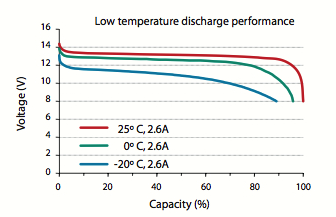

Grafico Batterie Super-B Grafico Batterie Super-B

Dettagli

Lightweight Lithium Ion starter battery, 1.874 lb / 850 gm, specially developed for motorcycles, jet skis, snowmobiles, ATVs and quads.

Safety

super B batteries are based on Lithium Iron Phosphate technology (LiFePO4). This  Lithium Ion technology used in super B batteries is the safest Lithium Ion technology available today. On top of that our bespoke casing and electronics further increase safety and durability.

F.I.M. / Stock Racing

The F.I.M. modified the regulations for stock racing regarding battery use.
Article 2.7.9.5 Battery: The Battery may be replaced. If replaced, its nominal capacity must be equal to or higher than the Homologated type. The F.I.M. has approved the super B battery for use as replacement battery.

Technical specifications

SKU/EAN13 8718531360013
Battery Designation 4IFP63/115/85-2
Height (mm) 83,50 / 84,50
Diameter (mm) NA
Width (mm) 113,50 / 114,50
Thickness (mm) 61,50 / 62,50
Nominal voltage (V) 13,2V
Charge method CCCV
End of charge voltage (V)  15,2V
End of charge voltage (V) for endurance (cycle life) 14,4V
Charge current (A) 20A (4C)
Charge current (A) for endurance (cycle life) 6A (1C)
End-of-discharge voltage (V) 8V
End-of-discharge voltage (V) for endurance (cycle life) 10V
Discharge current (A) 140A (30C)
Discharge current (A) for endurance (cycle life) 4,6A (1C)
Discharge pulse current (A) (10 seconds) 240A (52C)
Discharge pulse current (A) (1 second) 300A (65C)
Discharge performance at 20 °C (rated capacity) 4,6Ah / 60,72Wh
Discharge performance at –20 °C (capacity) 4,14Ah / 54,648Wh
High rate discharge performance at 20 °C (capacity) 4,37Ah / 57,684Wh
EqPb (Equals Lead acid battery) 10 to 12Ah
Operating temperature range -30°C to +60°C
Storage temperature range -50°C to +60°C
Weight 0,850kg
